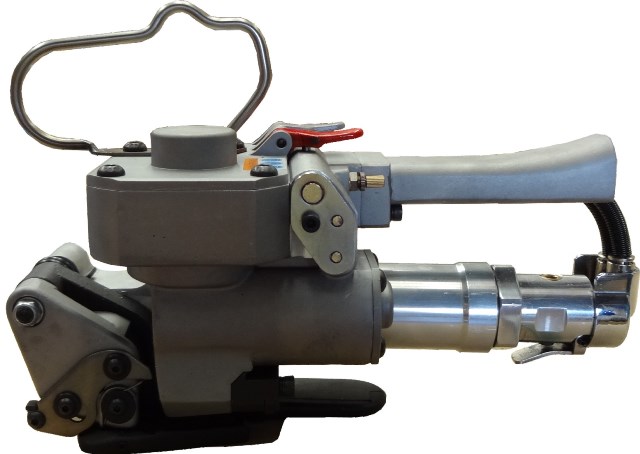

Sealing Strapping JAX-19

Home » Products » Industrial Equipments » Strapping » Hand Type

Stock Code : 880325031
Brand : OEM
Model : JAX-19
Description :
  • Strapping Material: Polyester
  • *** Identify type and ratio.
  • Strap thickness : Heavy gauge 1.0 - 1.5mm, Conventional 0.8 - 0.9mm, Light gauge 0.5 - 0.7mm
  • Air Pressure: 0.5 - 0.7Mpa (72 - 100psi)
  • Max. Strap Tension (at 0.63 Mpa): High tension type = Max. 2744N
  • Max. Strap Tension (at 0.63 Mpa): Middle tension type = Max. 1764N
  • Max. Strap Tension (at 0.63 Mpa): Low tension type = Max. 980N
  • Overall Length : 275mm, Base length : 70mm , Tool Width : 115mm, Tool Height : 130mm
  • Net / Gross Weight: 4kg / 5.1kg
  • Carton Dimension (LxWxH) : 350 x 220 x 230 mm
Brochure : Click here
Manual : -
Quantity :
Product Demo : -
